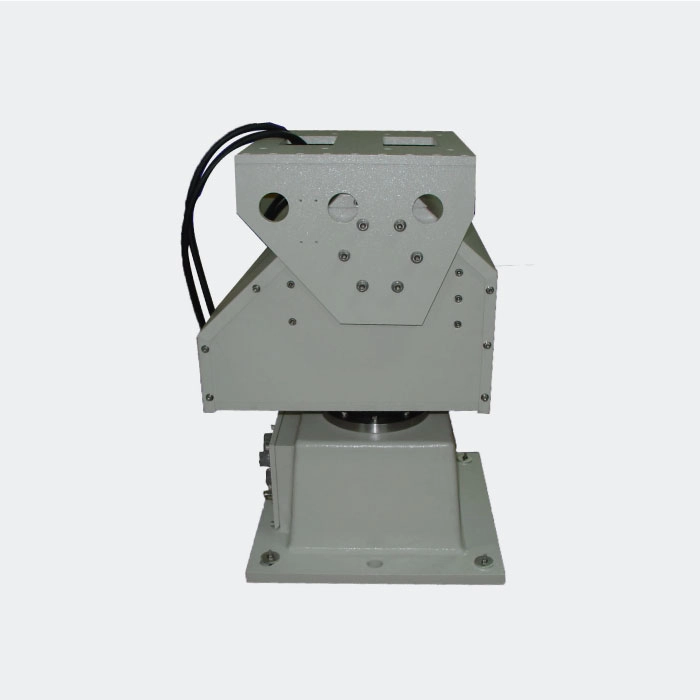

• Pan-Tilt Driver for camera housing and antenna mounting
• smooth manual speed : min 0.1°/sec
• 128 preset position and built-in RX
• swing, group mode support
• Water Proof
• Pan/Tilt Coordinate value on screen display is possible(option)
• PRESET POSITION FEEDBACK
• Pan endless (rotating 360° )
7000B | |
| Material | Aluminum diecasting / Aluminum plate |
| Size | 280L X 422H X 243W |
| Color | Light Gray (Munsell No. 5Y8/1) |
| Operating Temperature | -20℃ ≤ Ta ≤ 50℃ |
| PAN Rotate Angle | Pan 0°to 350°±5°/sec (option : 360°Endless) |
| TILT Rotate Angle | Tilt -80° to +80° |
| PAN Rotate Speed | Pan 0.1°~ 40°/sec |
| TILT Rotate Speed | Tilt 0.1°~ 20°/sec |
| Input Power | DC24V (options : Power box for AC100 ~ 240V / AC24V) |
| Weight | 18kg |
| Loading Weight | 30kg |
| Drive Type | BLDC MOTOR |
| Number of Preset | 128 |
| Communication Type | PELCO-D |
| Protection Grade | IP66 |
| Options | Rotating Speed & Angle Change, Low temperature -30℃ |
Specifications User Manual Drawing(DWG)
