PRODUCTS INFO

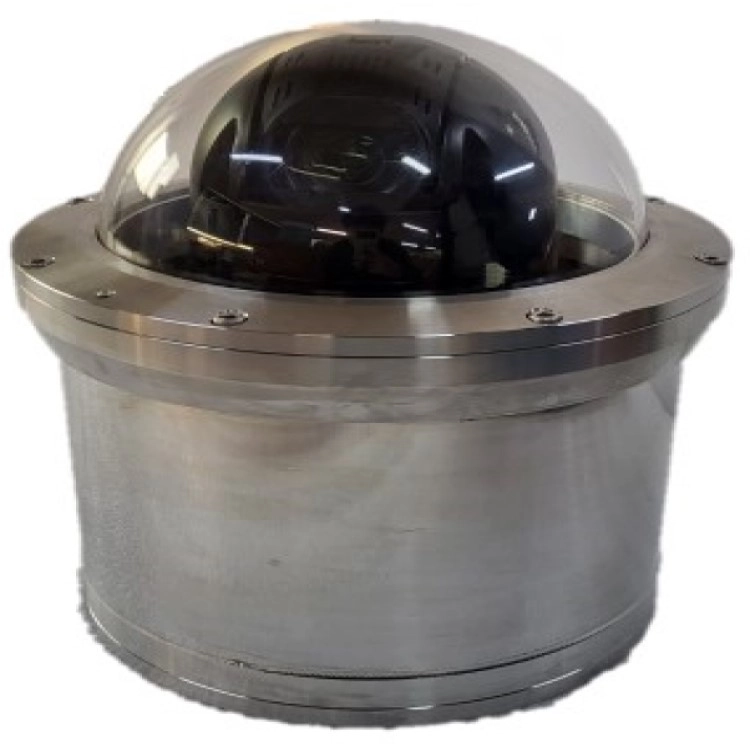

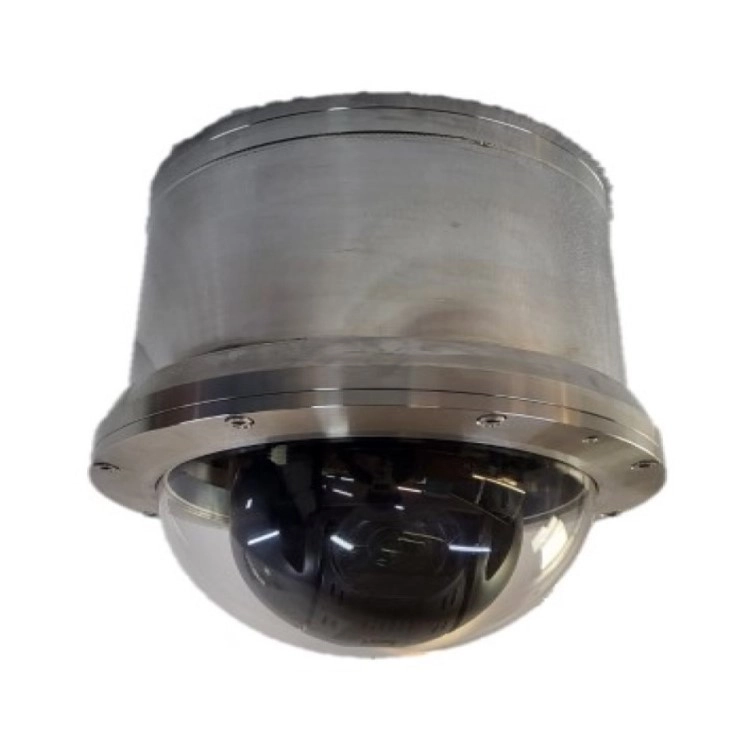

This unit as an flame proof camera housing can be used in conjunction with the cctv.
This unit is completely closed number as a petroleum refining, petrochemical, power plants, including the presence of explosive gases or high-risk areas that may occur can be installed and used.
The exterior of this unit was constructed with stainless steel material, and special surface treatments, such as the corrosive coastal, where the ship is easy to use, internal rust prevention and long-term use made of stainless steel, etc.
Dome cameras inserted inside are freely selected to the extent that certificates are allowed.
This item has been added to your cart.
Should I order it along with the items in my shopping cart?
Ex Grade (IECEx) | Ex db ⅡC T6 Gb, Ex tb ⅢC T85℃ Db |
Ex Grade (ATEX) | Ⅱ2G Ex db ⅡC T6 Gb, Ⅱ2D Ex tb ⅢC T85℃ Db |
Protection Grad | IP66, IP67 |
Material | Stainless steel STS304 (option : STS316) |
Color | Stainless steel Color |
Usual Temperature | -20℃ to +65℃ |
Input Power | AC 100 ~ 240V 0.125~0.3A(50~60Hz) [type A] AC 24V 1.25A(50~60Hz) or DC 24V 1.25A [type D] |
Power consumption | Max 50W |
Cable Inlet | NPT 1/2" 1H (options : NPT 3/4”, M20 ) |
Place of use(Ex) | ZONE 1,2,21,22 |
Size | W 230 X L 264 X H 287 |
Internal Camera Size | Ø123×125L (Max camera power - 25W) |
Weight | 13kg |
Cooling Fan (option) | On 35℃±5, Off 25℃±5 |
Heater (option) | On 5℃±5, Off 15℃±5 (Prevention of overheating.Off 45℃±5) |
Cooling Fan | Heater | Change material to STS316 | Change Inlet (NPT3/4, M20) |
Change input power (DC 24V, AC 24V) | Add inlet |
SPECIFICATION Drawing(DWG) Drawing(PDF)
